HEAT EXCHANGERS

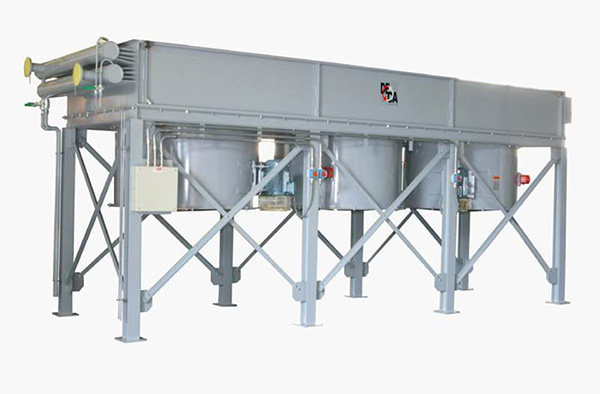

FIN & TUBE - FAN HEAT EXCHANGER

  • air cooler type GRF
  • evaporator type GEF
  • condenser type GCF

(download of technical data sheet)

Heat exchanger designed for air conditioning, industrial refrigeration, systems of heating or cooling of air, oil cooling or as condenser or evaporator. Using of corrugated fins allows to achieve very efficient heat transfer surfaces. Pressure loss can be corrected by pitch of tubes and fins. Each heat exchanger is individually designed according to the operating parameters.

If the installation allows/requires, it is possible to combine multiple sections for the purpose of maximum plant efficiency.

Heat exchanger could be designed according to PED 97/23EC and manufactured according to the standards: AD 2000, API 661, ASME VIII div.1;

Materials used for the manufacture of heat exchangers

TUBES FINS
stainless steel stainless steel
carbon steel carbon steel metalized
Cu-Ni alloy (cupronickel) carbon steel painted
copper alluminium
