Biogas dryer / dehumidifier

- unit for Biogas plants type MDU

(download of technical data sheet)

is developed for applications:

  • Biogas - from agricultural and food substrates
  • Sewage treatment plants - sewage sludge from wastewater treatment plants.
  • Landfill gas - from landfills

Flow of gas 150 – 300 – 600 Nm3/hr.

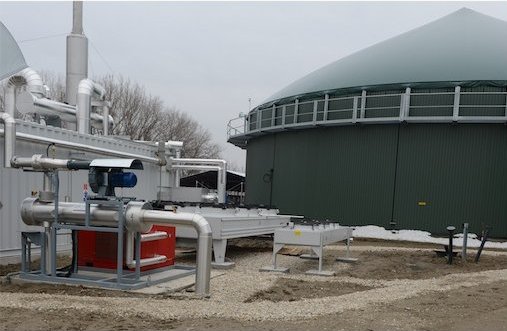

Biogas dryer / dehumidifier

Untreated natural gas containing methane is not so suitable as a fuel to gas engines, because of its minor chemical components, which may eventually damage the internal parts of the engine. ( pistons , injectors , valves , etc ... ) Therefore, in order to avoid increased costs for service or damage to engines, it is advisable to clean the biogas and reduce its moisture content . This avoids engine failure, it maintains the required quality of oil over time, and also it could be expected lower consumption due to higher engine efficiency.

Raw natural gas containing methane gas is saturated with water vapor and traces of contaminated gases, such as hydrogen sulfide ( H2S) and ammonia (NH3) . The water vapor and a portion of unwanted components can be easily removed just in the dehumidifying / condenser unit. When saturation temperature / dewpoint of the biogas, contained water vapor, is exceeded during cooling, then water condenses on the cold surface of the heat exchanger, and is collected in the heat exchanger, and (along with other minor components) is discharged outside of the gas pipe. The method uses a special tube heat exchanger installed in the pipeline, which carries out the cooling of gas by circulation of antifreeze between the heat exchanger and cooler. Then gas can be reheated by energy taken from cooling.

The dehumidifying unit is delevered on the steel frame and includes of main three parts:

  • Cooling unit with antifreeze circuit, operating at very low temperatures
  • Tubular condenser / special heat exchanger with low pressure drop - upto 0,5 kPa
  • Collector of condensate

Information of some manufacturers of gas engines:

Manufacturer Relative humidity/ Moisture of fuel gas – recommanded values
Jenbacher less than 80% with zero condensate
Deutz less than 60–80%
Caterpillar less than 80% at minimum fuel temperature
Waukesha Zero liquid water; recommend chilling gas to 4°C followed by coalescing filter and then reheating to 29–35°C; dew point should be at least 11°C below temperature

Source: Environment Agency August 2004 - Guidance on gas treatment technologies for landfill gas engines
