HEAT EXCHANGERS

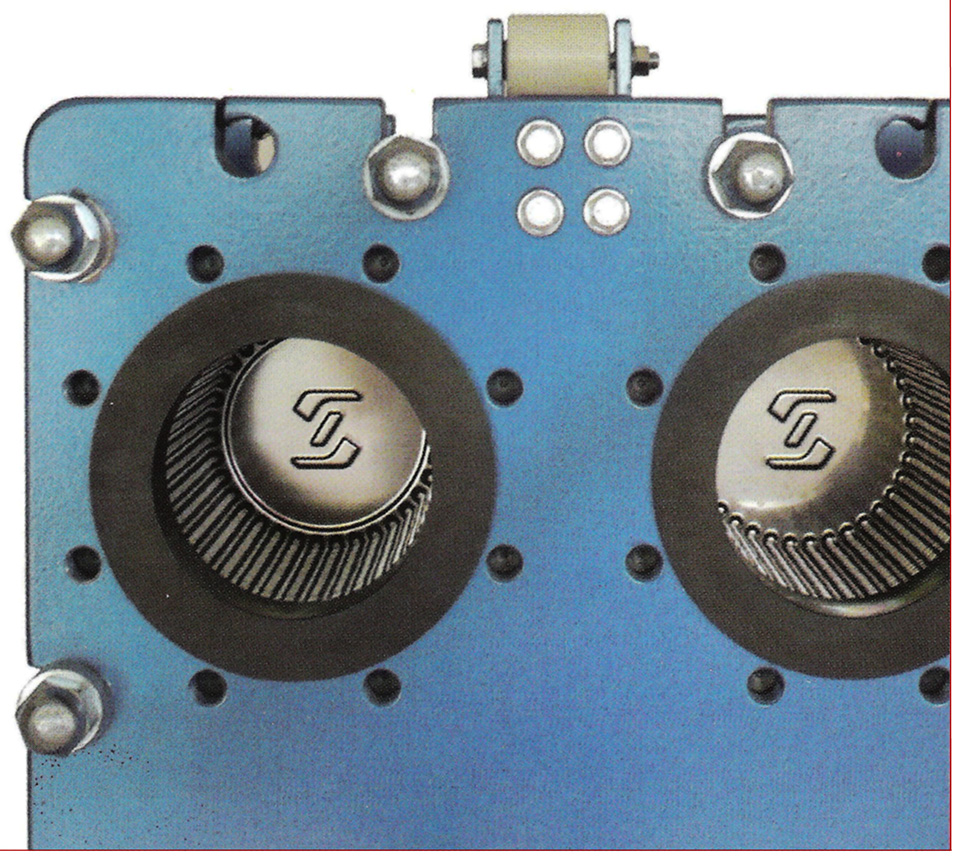

FRAME & PLATE HEAT EXCHANGERS

In the area of Frame & Plate heat exchangers we cooperate with reputable manufacturer from Italy - TECHNO-SYSTEM s.r.l. The company develops and produces dismountable plate heat exchangers since 1983. Their products meets customers demands from Food industry to Energetic segments.

The continuous emphasis on Development and Innovation is now reflected at quality of the products. In the test laboratory, there is tested performance and pressure drop of heat exchangers, which are placed on the market.

From a rational point of view, the ratio “utility value /price“ would be interesting . The success of the products suggests the best references of customers.

TECHNO-SYSTEM

The own calculation software includes a single and multi-passes arrangements . The range of heat exchange plates, with channels "free flow" and "high efficiency", covers the requirements of most technological processes. The best idea about ​​ range will refer the connection size - from DN32 to DN200.

The materials used for PHE plates includeds wide range, from standards chrome-nickel steel 1.4404 (AISI 316L ) to Hastelloy, Monel or Titanium.

The gaskets with a usefull „clip-on“ fixing system are performed in a range of materials : NBR ( nitrile) , EPDM, EPM , FKM ( Viton) , silicone rubber.

The special versions are possible for the food industry and higher service requirements, i.e. stainless steel frame with a special connection types ( see data sheets).


(download technical information about product line)

TECHNICAL DATASHEETS TABLE FOR QUICK REFERENCE

(click on type for technical details)

Type Nominal Diameter Conn. Distance Horizontal Conn. Distance Vertical
STANDARD PN 10, 16, (25)
TSC 510 DN32 86 381
TSC 910 DN32 86 657
TSC 1410 DN50 (65) 140 690
TSC 1420 DN50 (65) 140 690
TSC 2610 DN50 (65) 140 1200
TSC 2410 DN100 230 720
TSC 4810 DN100 230 1364
TSC 4510 DN150 296 973
TSC 8110 DN150 296 1573
TSC 4410 DN200 396 776
TSC 7110 DN200 396 1146
TSC 9910 DN200 396 1536
SPECIAL PN 6, 10, (16)
TSC 511 DN32 86 381
TSC 911 DN32 86 657
TSC 1411 DN50 (65) 140 690

REFERENCE

(will be sent on request)
