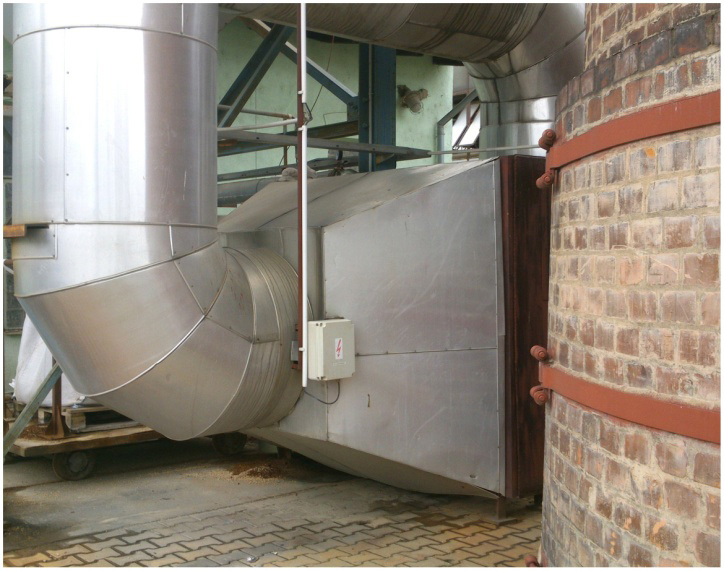

FIN & TUBE HEAT EXCHANGER
- flue gas and waste gas recovery type GE

(download of technical data sheet)

The whole stainless steel heat exchanger designed for efficient use of residual heat of waste gas or flue gas. Using of corrugated stainless steel fins&tube arrangement allows to achieve very efective heat transfer surfaces. The Possibility of use gasses with temperature higher of 350°C is necessary to consult. Unit could be equipped with input and output chamber with nozzle connections. Pressure loss can be corrected by pitch of tubes and fins. Each heat exchanger is individually designed according to the operating parameters.

If the installation allows/requires, it is possible to combine multiple sections for the purpose of maximum plant efficiency.

Heat exchanger could be designed according to PED 97/23EC and manufactured according to the standards: AD 2000, API 661, ASME VIII div.1;

Materials used for the manufacture of heat exchangers

TUBES FINS
Stainless steel WNr.1.4301, 1.4404 Stainless steel WNr.1.4301, 1.4404
